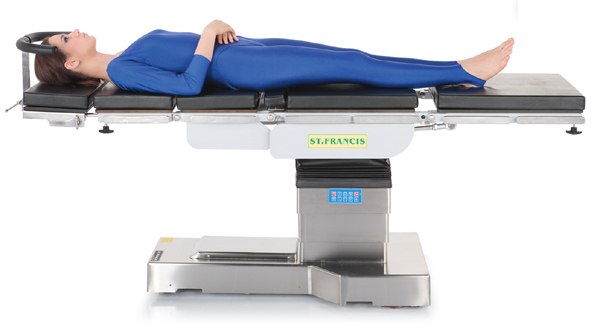

Fully Electric Universal Operating Table » OT-2300

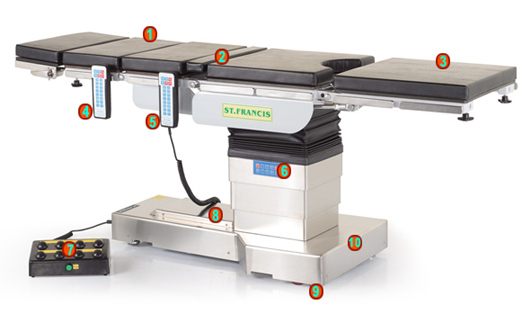

1
An extra powered upper back section to meet the requirement of chest position.
2
An extra powered upper back section to meet the requirement of chest position.
3
The electric leg plate bend adjust by hand controller.
4
Wireless remote controller (optional accessories OT-1832)
5
Coiled remote hand controller with precisely designed program provides versatile table top movement safety and precisely patient
position.
6
Emergency override panel: An independent control panel with fail-safe system offers override function if remote control hand box
is not available.
7
The waterproof foot pedal controller offer table top movements as Height up/down, Back section up/down, Trendelenburg /
Reverse trend and Lateral tilt left/right. (optional accessories OT-1833)
8
Ups powered supply rechargeable battery system has sufficient capacity for approx 100 operations.
9
4electro-hydraulic floor locking supporters with auto-balance system keep the table stable.
10
The T-shaped base lends the table excellent stability and provides easy access for surgical team.

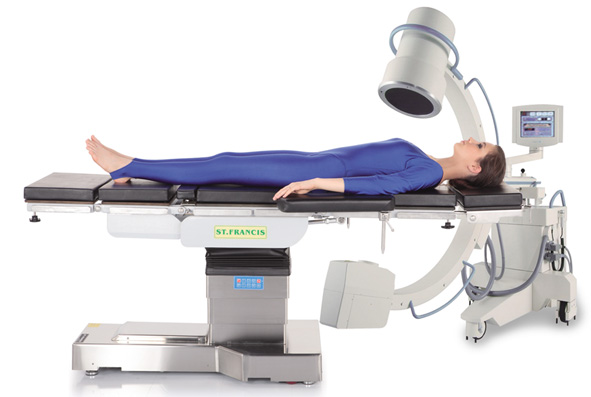

Vertical position for C arm x-ray

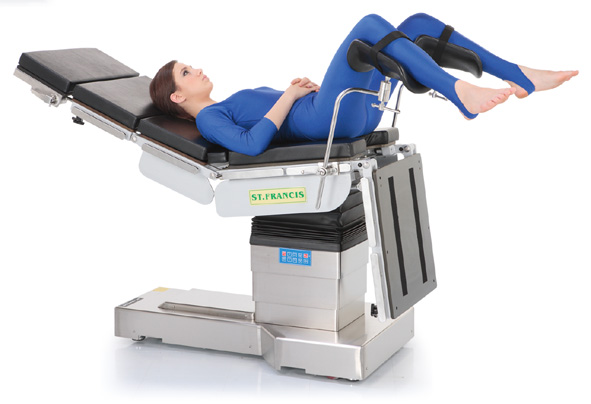

Gynecology, Urology position
Ophthalmic position
(Optional accessories recommended: Wrist support OT-1733)
Nephrectomy position
(Optional accessories recommended: Head cushion OT-1723, Raised armrest OT-1728, Kidney Elevator OT-1740)
Neurosurgery position
(Optional accessories recommended: U-shaped headrest OT-1720)

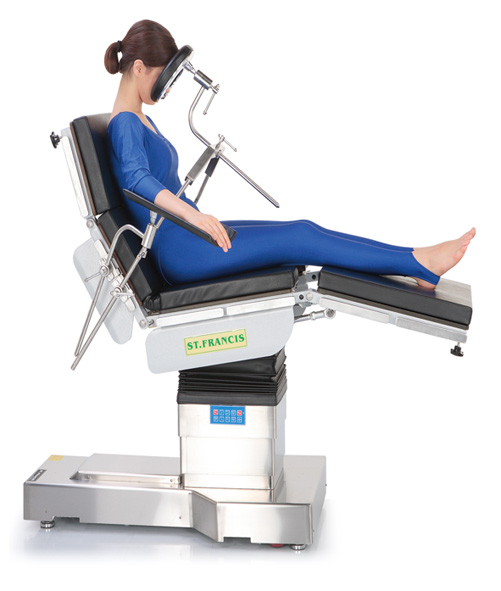

Sitting position
(Optional accessories recommended: Sitting head support OT-1732, Raised armrest OT-1728)

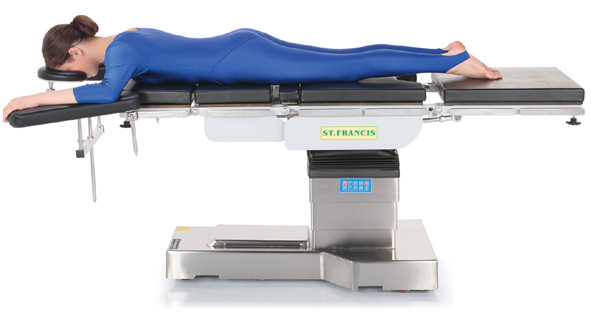

Rectal position
(Optional accessories recommended: Cylindraceous support OT-1726, Foot support OT-1724)
Thoracic position
(Optional accessories recommended: Kidney Elevator OT-1740)

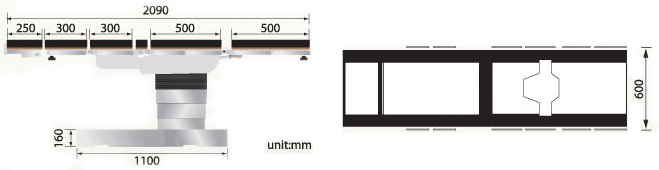

Table Dimension / mm

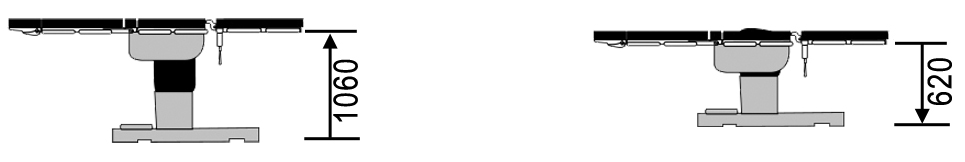

Table Top Elevation

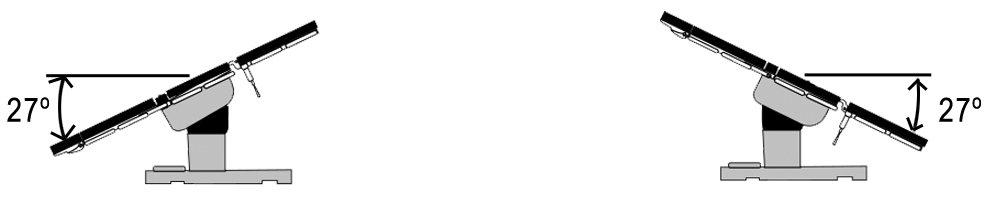

Trendelenburg / Reverse Trend

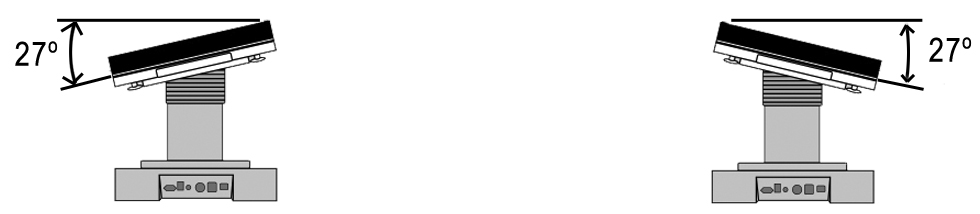

Lateral Tilt (Left / Right)

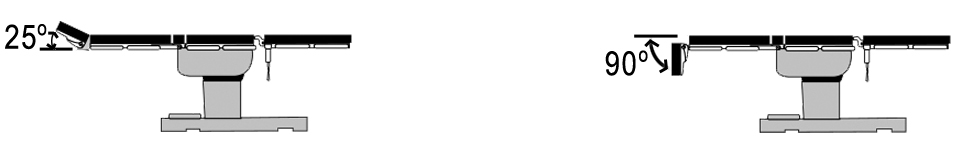

Lower Back Section (Up / Down)

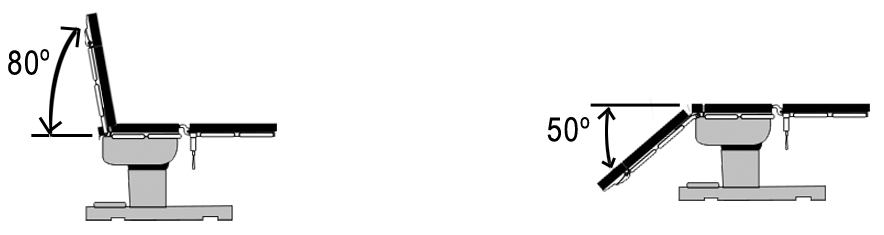

Upper Back Section (Up / Down)

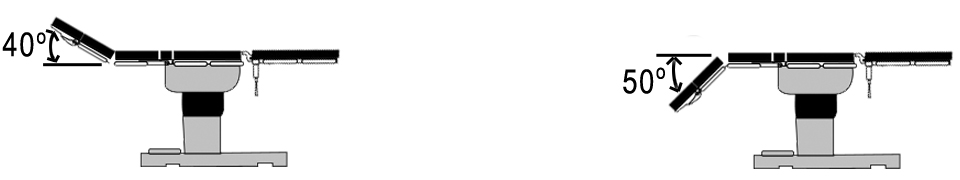

Head Section (Up / Down)
Emergency Override Panel
Standard Accessories
Ups Battery Device
Standard Accessories
Elec. AC Input
110V ~ 230V 50 / 60Hz
Remote Controller Power
DC 12V
Table Weight (Approx)
285
Mattress Thick
5.5 CM
Patient Weight Capacity
250 KGS
