Fully Electric Universal Operating Table » OT-2100
|
1
|
Table to consists of five sections coverd with detachable electric conductive fiber mattress to provide high performance
flexibility. The head and leg boards can be removed manually.
|
|
2
|
Touch-screen coiled remote hand controller with precisely designed program provides versatile table top movement safety and
precisely patient position.
|
|
3
|
4 castors can roll both longitudinally and laterally.
|
|
4
|
4 electro-hydraulic floor locking supporters with auto-balance system keep the table stable.
|
|
5
|
The T-shaped base lends the table excellent stability and provides easy access for surgical team.
|
Table top longitudinal slides up to 35cm to get the maximum radiolucent field for free access C-ARM without moving the patient or extra extensions on table top.
Two separate boards can be adjusted up, down or split tilt angle position.
X-ray photography table top offers whole body image amplication coverage.
FEMORAL STEM FRACTURE LATERAL POSITION
NOSE AND THROAT PROCEDURES
TIBIA AND FIBULA FRACTURE POSITION
SURGICAL OPERATION FOR HAND AND ARM
VERICAL USE OF C ARM X-RAY
KNEE AND NECK OF FEMUR POSITION
DORSAL POSITION
NEUROSURGICAL POSITION
KIDNEY POSITION
RECTAL POSITION
GYNECOLOGICAL, UROLOGICAL AND LITHOTOMY POSITION

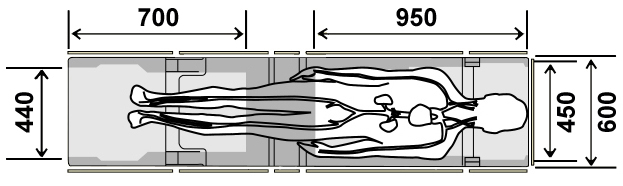

Table Dimension / mm
Table Top Elevation
Trendelenburg / Reverse Trend
Lateral Tilt (Left / Right)
Back Section (Up)
Head Section (Up)
Footplate
(Up / Down / Split Tilt)
Upward 60° is Available
(Up / Down / Split Tilt)
Upward 60° is Available
|

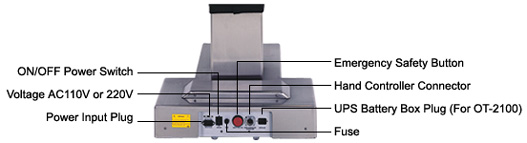

Ups Battery Device
|
OT-2100 Optional Accessories / OT-1717
|
|
Elec. AC Input
|
110V OR 220V, 50 / 60Hz
|
|
Remote Controller Power
|
DC 12V
|
|
Table Weight (Approx)
|
285
|
|
Mattress Thick
|
5.5CM
|
|
Patient Weight Capacity
|
180KGS
|
|
Safety Standards
|
EN 61010-1, EN 1441,EN 60601-1-1-2, EN 60555-2, EN 61000-3-3,
IEC 801-3, IEC 801-4, EN 60601-1
|
