Manual Hydraulic Universal Operating Table » OT-125A / 128A
» This model operating table is the simplest designed for use in general surgery, emergency and for an auxiliary table.
» Table top consists of four sections, head, back, seat and leg sections and equipped with two slide rails.
» The base, gear box and table top are covered with ABS synthetic resin which may resist corrosion, knocking and scratches, it is durable and easily cleansable.
» The mattress on the table top is specially treatment, it may be easily cleaned and no blood spot will be remained.
» Sightly step on the foot pedal of action to move up and down the table to suitable position, and any movement. Of position is very smooth for operation.
» The table base equipped with a locking screw to stop or free the table to move and there are four castors for easy move.
» Table top consists of four sections, head, back, seat and leg sections and equipped with two slide rails.
» The base, gear box and table top are covered with ABS synthetic resin which may resist corrosion, knocking and scratches, it is durable and easily cleansable.
» The mattress on the table top is specially treatment, it may be easily cleaned and no blood spot will be remained.
» Sightly step on the foot pedal of action to move up and down the table to suitable position, and any movement. Of position is very smooth for operation.
» The table base equipped with a locking screw to stop or free the table to move and there are four castors for easy move.
» Length of table top (Head 25cm + Back 60cm + Seat 52cm + Leg 53cm) …190cm
» Width of table top…50cm
» Table top height lowest / heightest…75cm ~ 100cm

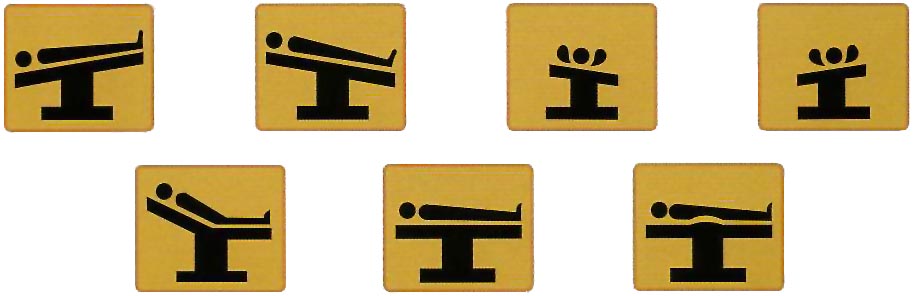

» Lateral tilt left / right…20° / 20°
» Trendelenburg / Reverse trendelenburg…30° / 30°
» Back section up / down tilt angle…45° / 0°
» Head section up / down tilt angle…30° / 90°
» Leg section up / down tilt angle…0° / 90°
» Width of table top…50cm
» Table top height lowest / heightest…75cm ~ 100cm
» Lateral tilt left / right…20° / 20°
» Trendelenburg / Reverse trendelenburg…30° / 30°
» Back section up / down tilt angle…45° / 0°
» Head section up / down tilt angle…30° / 90°
» Leg section up / down tilt angle…0° / 90°
