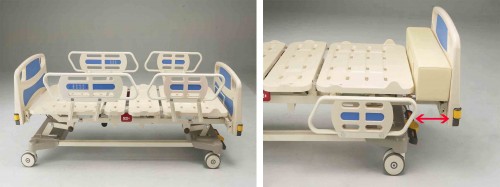

Full Electric ICU Bed » B-850A
1. Overall Size : L2210 x W930 mm (Rail down)
L2210 x W1065mm (Rail up)
2. Backrest Lift: 0 - 80º
3. Knee-break Lift: 0- 40º
4. Adjustable Height: 440-740 mm
5. Trendelenburg & Rev. Trend: ± 11º
6. Frame: Made by steel with Special Anti-Bacterial Powder Coating
7. Support Mattress Platform: ABS Moulding (4 sections)
8. Detachable ABS Head / Foot Board (No.H-09)
9. Tuck-away Side Rails (1/2 Length) (Zero gap between bed to trolley)
10. Side Rail with Built-in Controllers: Use Double-Side Design
11. Low Voltage DC Motor with Battery Back-up (CE UL Approval)
12. Lockable Caster with ABS Cover: 125 mm(Diameter)
13. I.V.Socket:2 (each side)
L2210 x W1065mm (Rail up)
2. Backrest Lift: 0 - 80º
3. Knee-break Lift: 0- 40º
4. Adjustable Height: 440-740 mm
5. Trendelenburg & Rev. Trend: ± 11º
6. Frame: Made by steel with Special Anti-Bacterial Powder Coating
7. Support Mattress Platform: ABS Moulding (4 sections)
8. Detachable ABS Head / Foot Board (No.H-09)
9. Tuck-away Side Rails (1/2 Length) (Zero gap between bed to trolley)
10. Side Rail with Built-in Controllers: Use Double-Side Design
11. Low Voltage DC Motor with Battery Back-up (CE UL Approval)
12. Lockable Caster with ABS Cover: 125 mm(Diameter)
13. I.V.Socket:2 (each side)

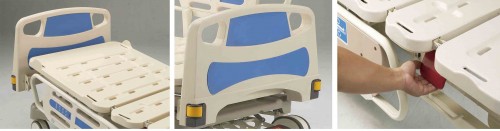

Support Mattress Platform & Multi-treatment Head and foot board & CPR Release for Backrest(Option)
Tuck-away Side Rail & Bed-Length Extension(range:200mm(L2210-L2410))

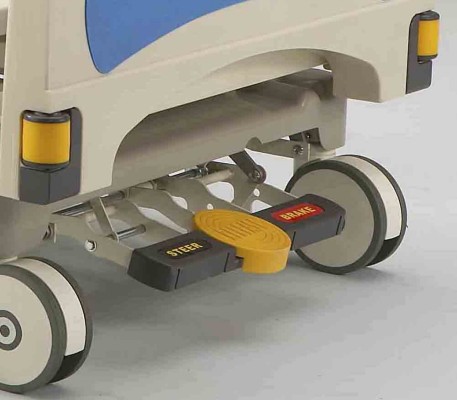

Central Brake and Steer System
